Receive important AKStream.Next events with third-party Webhooks

Third-party Webhooks push important device, RTC, MediaServer, stream, and recording facts to external systems. One endpoint equals one delivery plan. Multiple plans have independent secrets, event scopes, timeouts, retries, tests, and delivery history.

Receiver contract first: expose an HTTPS URL reachable from the AKStream.Next node, for example https://events.example.com/akstream/webhook. Your application chooses the path and accepts POST with an UTF-8 JSON body. Verify the signature, dispatch on eventName, process data, then respond with any 2xx (typically 204 No Content). Put the complete URL and a shared secret into the AKStream.Next delivery plan. AKStream.Next calls your endpoint; the /api/v2/system/webhooks/... APIs are for managing delivery plans, not receiving notifications. Reverse proxies must preserve the body and X-AKStream-* headers. See the wire contract and event fields below.

Run a real test for every plan before production. Valid fields do not prove DNS, TLS, WAF, signature verification, or receiver idempotency.

Never put credentials in the URL. Endpoint URLs reject embedded credentials, query strings, and fragments. Existing shared secrets are encrypted at rest and are never returned to the page.

Quick start

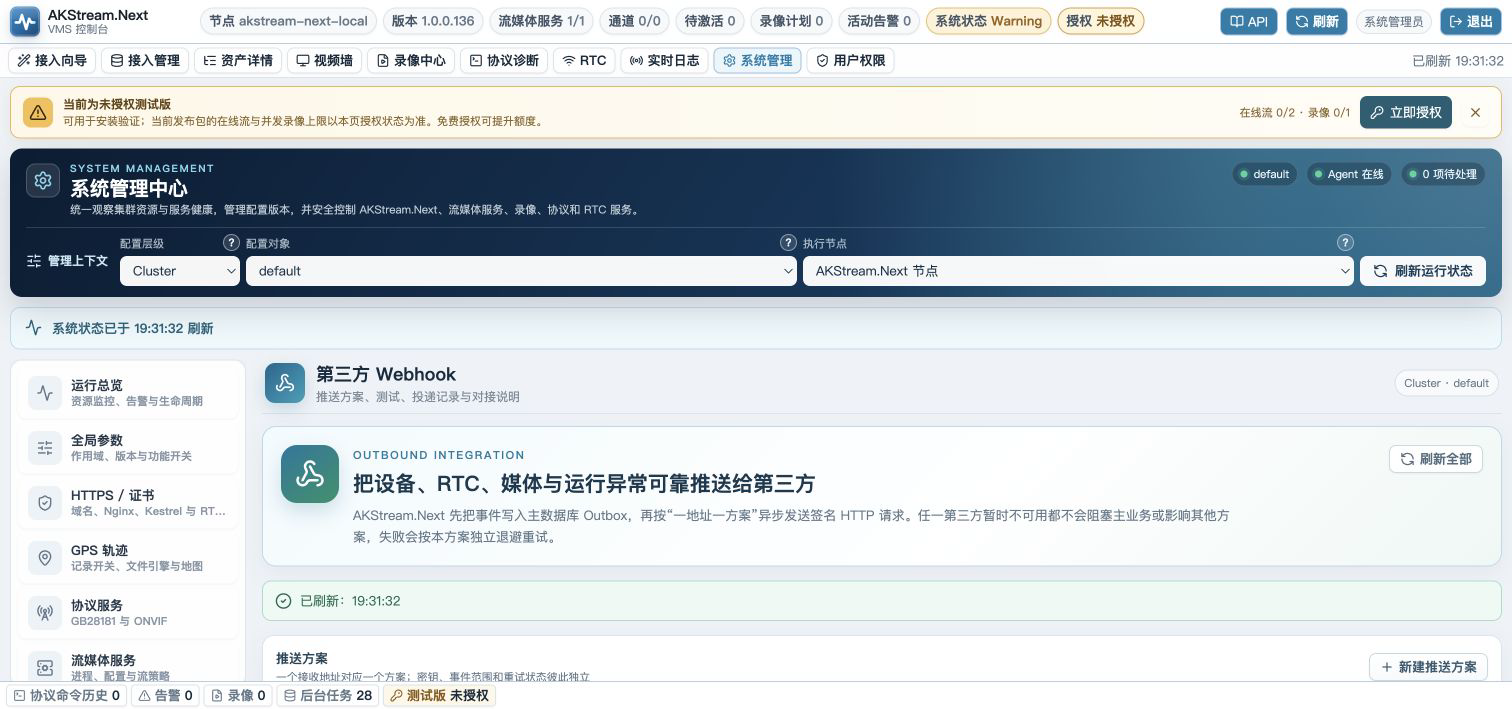

1. Open System Management → Third-party Webhook. The entry is located after RTC / SFU and before Runtime Environment.

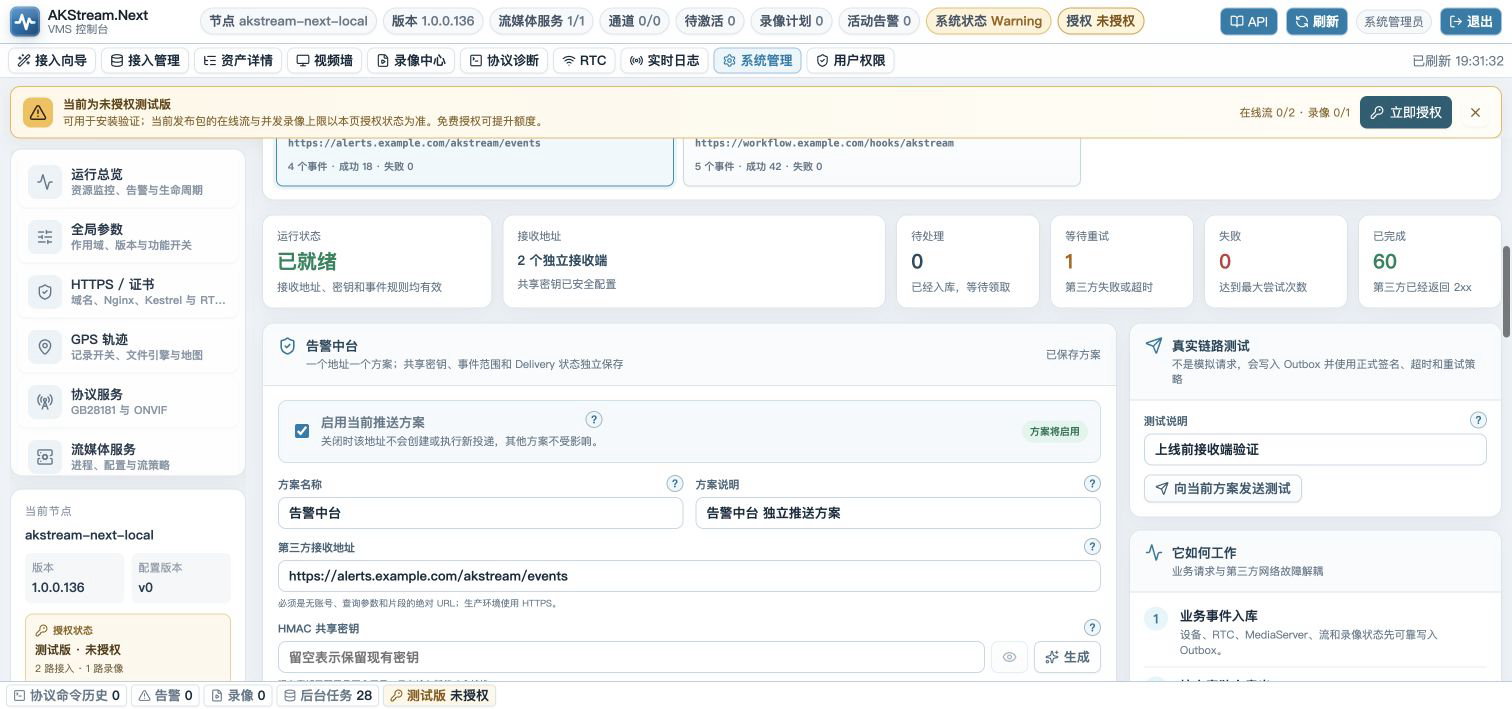

2. Select New delivery plan and enter a name, purpose, and one HTTPS endpoint.
3. Generate a plan-specific HMAC secret and store it in the receiver’s secret manager.
4. Select explained events from the Media, GB28181, RTC, and raw-hook groups.
5. Save the plan, then send a test to that plan only.
6. Confirm that its delivery row reaches Completed with the receiver’s real 2xx status.

Understand multiple delivery plans

flowchart LR
  device[GB28181 devices] --> outbox[(Business Outbox)]
  rtc[RTC rooms and participants] --> outbox
  media[MediaServer / streams / recordings] --> outbox
  outbox --> fanout[Match enabled plans]
  fanout --> deliveryA[(Delivery A)] --> planA[Alerting endpoint]
  fanout --> deliveryB[(Delivery B)] --> planB[Workflow endpoint]
  fanout --> deliveryC[(Delivery C)] --> planC[Data endpoint]

The same EventId is used across matching plans. Each plan signs with its own secret, so signatures differ. Plan A can complete while Plan B retries; neither result overwrites the other.

Plan fields

Leaving the secret field empty while editing preserves the existing secret. Entering a new value rotates only that plan. Archiving cancels unfinished deliveries and preserves historical evidence.

Choose events

Standard events are checkboxes with a trigger, use case, and volume indicator. Operators do not need to type internal names.

Media and recordings

MediaServer crash and start-failure events come from managed process and lifecycle state transitions, not from decorative health polling. The recording event exposes the file name but not the server’s absolute path.

GB28181 devices

Repeated REGISTER refreshes and Keepalive requests do not generate recovery storms when the device state did not change.

RTC

Chat messages, whiteboard strokes, normal heartbeats, and page refreshes are not recommended external events.

Raw MediaServer hooks

zlm.webhook.* includes authentication, keepalive, play, publish, and flow-report hooks. Enable the wildcard only after the receiver has capacity limits and a reviewed data scope. Stable business events above are the normal integration surface.

Legacy snake_case rules such as zlm.webhook.on_stream_changed remain compatible and are normalized when the plan is saved.

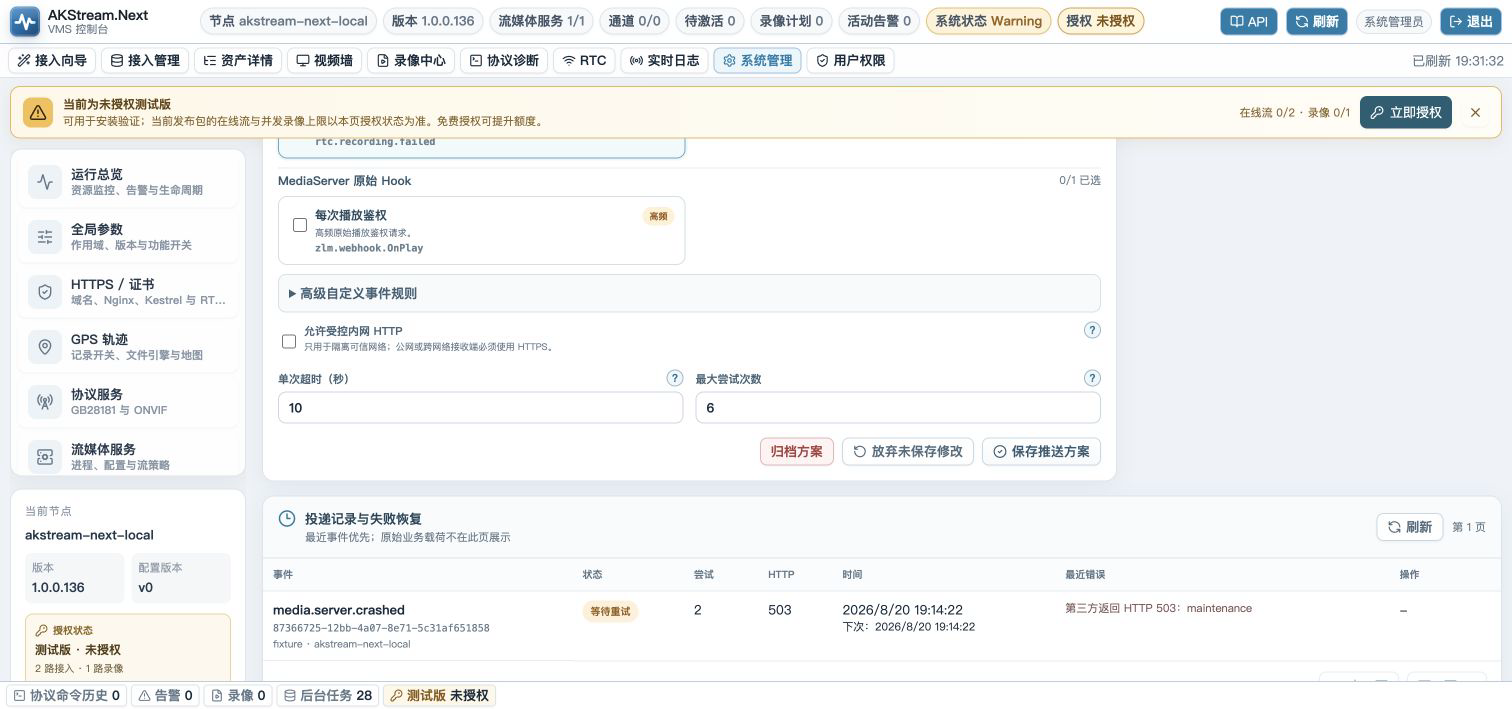

Test and recover deliveries

The test action emits system.webhook.test to the selected plan only. This event is created only by an authorized operator, bypasses the normal event-scope check for that one plan, and exercises the real Outbox, signature, timeout, and retry path.

sequenceDiagram
  actor Admin
  participant Web as Webhook page
  participant API as AKStream.Next API
  participant DB as Outbox / Delivery
  participant Worker as Dispatcher
  participant Receiver
  Admin->>Web: Test selected plan
  Web->>API: POST /subscriptions/{id}/test
  API->>DB: Insert targeted test event
  Worker->>DB: Claim Delivery for this plan
  Worker->>Receiver: POST JSON + HMAC headers
  alt Receiver returns 2xx
    Receiver-->>Worker: 204
    Worker->>DB: Completed
  else Timeout or non-2xx
    Receiver-->>Worker: 500 / timeout
    Worker->>DB: Waiting for retry
  end

stateDiagram-v2
  [*] --> Pending
  Pending --> Delivering: conditional claim
  Delivering --> Completed: 2xx
  Delivering --> WaitingRetry: timeout / network / non-2xx
  WaitingRetry --> Delivering: due
  Delivering --> Failed: attempts exhausted
  Failed --> Pending: operator retry
  Pending --> Canceled: plan archived
  WaitingRetry --> Canceled: plan archived

The page never renders the raw Outbox payload. It shows the event name, EventId, attempts, HTTP status, timestamps, and a bounded error summary.

Implement a receiver

AKStream.Next sends POST to the complete URL configured for the plan, with Content-Type: application/json; charset=utf-8. Preserve the raw body, verify the timestamp and HMAC, and only then parse JSON. No GET endpoint or receiver-side polling is required. The field names below match the 1.0.0.158 producer code: data is not uniformly camel-cased.

Request body

{
  "schemaVersion": 1,
  "eventId": "e0b4e218-a6bb-487b-9af2-86e042a87c78",
  "eventName": "device.gb28181.registered",
  "occurredAtUtc": "2026-08-20T08:30:00Z",
  "source": "gb28181",
  "nodeId": "node-01",
  "data": {
    "DeviceId": "34020000001320000001",
    "Name": "East gate camera",
    "Direction": "Server",
    "Status": "Online",
    "previousStatus": null,
    "reason": "REGISTER accepted",
    "occurredAtUtc": "2026-08-20T08:30:00Z"
  }
}

The top-level envelope is generated by the dispatcher. data preserves the property names chosen by each event producer, including uppercase initials. Timestamps and IDs in examples illustrate format, not a fixed real delivery.

Event-specific data fields

These are the fields actually emitted by the current producers. Route by eventName, preserve exact capitalization, tolerate additional fields, and treat “nullable” as a present JSON property whose value may be null.

For example, a participant-joined notification carries this data object:

{"RoomId":"room-demo-001","Sequence":18,"EventType":"participant-joined","ParticipantId":"p-demo-001","TargetParticipantId":null,"occurredAtUtc":"2026-09-28T02:30:00Z"}

For a raw Hook, the wrapping is "data":{"HookName":"OnPlay","RawJson":"{\"app\":\"live\"}"}. Only consumers that subscribe to raw Hooks should parse RawJson a second time. Structured JSON properties named secret, password, passwd, token, accessToken, refreshToken, authorization, cookie, licenseCode, requestCode, apiKey, or params are replaced with [REDACTED] before sending; this does not guarantee redaction of an embedded RawJson string.

Headers and signature

Illustrative HTTP request (the signature is a placeholder; compute it from the actual body):

POST /akstream/webhook HTTP/1.1
Host: events.example.com
Content-Type: application/json; charset=utf-8
X-AKStream-Event: rtc.participant.joined
X-AKStream-Event-Id: 96f8f29e-a6e2-46c4-bb32-99a643043f2a
X-AKStream-Subscription-Id: 538fb28e-7739-4e44-b747-df375e9228d7
X-AKStream-Timestamp: 1790562600
X-AKStream-Signature: v1=<64-character lowercase hex digest>
Idempotency-Key: 96f8f29e-a6e2-46c4-bb32-99a643043f2a

{"schemaVersion":1,"eventId":"96f8f29e-a6e2-46c4-bb32-99a643043f2a","eventName":"rtc.participant.joined","occurredAtUtc":"2026-09-28T02:30:00Z","source":"rtc","nodeId":"node-01","data":{"RoomId":"room-demo-001","Sequence":18,"EventType":"participant-joined","ParticipantId":"p-demo-001","TargetParticipantId":null,"occurredAtUtc":"2026-09-28T02:30:00Z"}}

The signature input is:

<timestamp>.<raw HTTP request body>

The dot is a literal .; do not add angle brackets, whitespace, or a newline. Use the current plan's secret as the UTF-8 HMAC-SHA256 key, encode the digest as lowercase hex, and prefix it with v1=. Verify the received body before parsing/reserializing it and compare digests in constant time. Also check a bounded timestamp window (for example ±300 seconds), schemaVersion, and that event name/ID headers agree with the body. Every retry gets a fresh timestamp/signature but retains eventId.

Return any 2xx (200, 201, 202, or 204) only after durable business processing. The response body has no required schema and is not parsed for business data. Network errors, timeout, and non-2xx cause plan-specific retries (2–30 second per-attempt timeout, 1–10 attempts, backoff starting around 5 seconds and capped at 300 seconds). Never return 200 for a processing failure. A lost response can produce a duplicate after a successful commit: put the event-ID uniqueness record and business change in the same transaction. Use eventId for one plan or (subscriptionId, eventId) if several plans feed one receiver. Use 401/403 for failed verification, 405 for a wrong method, and 5xx for temporary failures.

Runnable Node.js example

Store the secret outside source code and shell history used for routine operations:

export WEBHOOK_SECRET='the plan secret copied from AKStream.Next'
node receiver.mjs

import crypto from 'node:crypto'
import http from 'node:http'

const secret = process.env.WEBHOOK_SECRET
if (!secret) throw new Error('WEBHOOK_SECRET is required')
const seen = new Set()

http.createServer((request, response) => {
  if (request.method !== 'POST' || request.url !== '/akstream/webhook') {
    response.writeHead(405).end()
    return
  }
  const chunks = []
  request.on('data', chunk => chunks.push(chunk))
  request.on('end', () => {
    try {
      const rawBody = Buffer.concat(chunks)
      const timestamp = String(request.headers['x-akstream-timestamp'] || '')
      const supplied = String(request.headers['x-akstream-signature'] || '').replace(/^v1=/, '')
      if (!/^\d+$/.test(timestamp) || Math.abs(Date.now() / 1000 - Number(timestamp)) > 300) throw new Error('stale timestamp')
      const expected = crypto.createHmac('sha256', secret).update(`${timestamp}.${rawBody.toString('utf8')}`, 'utf8').digest('hex')
      const left = Buffer.from(supplied, 'hex')
      const right = Buffer.from(expected, 'hex')
      if (left.length !== right.length || !crypto.timingSafeEqual(left, right)) throw new Error('invalid signature')
      const event = JSON.parse(rawBody.toString('utf8'))
      if (event.schemaVersion !== 1 || event.eventId !== request.headers['x-akstream-event-id']
          || event.eventName !== request.headers['x-akstream-event']) throw new Error('invalid event envelope')
      if (!seen.has(event.eventId)) { seen.add(event.eventId); console.log(event.eventName, event.data) }
      response.writeHead(204).end()
    } catch (error) {
      console.error(error.message)
      response.writeHead(401).end()
    }
  })
}).listen(9080, '127.0.0.1')

The 127.0.0.1 listener and in-memory Set are for same-machine testing only. On a separate host, configure the listener, reverse proxy, and plan URL so that the same HTTPS path is reachable. Limit body size in production and commit idempotency with the business transaction. The receiver does not need an AKStream.Next administrator token; its authentication credential is the plan's HMAC secret.

API reference

Upgrade and migration

On the first start after upgrading, the legacy single endpoint under AkStream:OutboundWebhook is migrated to a plan named “Default delivery plan”. Its secret is immediately re-encrypted with the current installation's data-protection key, and migration logs never print the endpoint credential or secret.

Migration runs once. As soon as any active or archived plan exists, startup will not create another default plan. The legacy configuration remains only for the compatibility window and is no longer authoritative for multi-plan delivery. Back up the new tables before rolling back because older versions cannot represent multiple plans without data loss.

Troubleshooting

Start with one test plan and recommended events. Add more plans only after each receiver passes its own real test.
